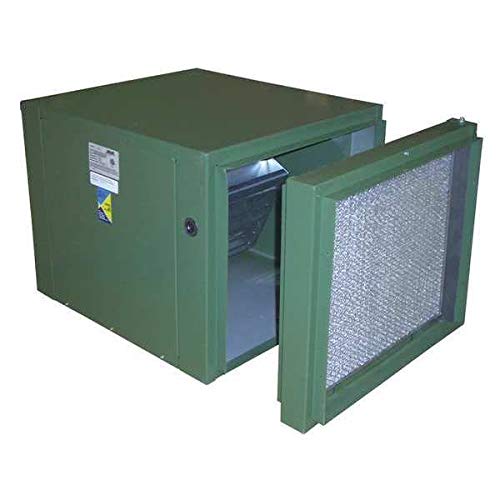

Name: Blower, Inline Duct
Brand: Delhi
SKU: Blower_Inline_Duct_04204
Price: 200.00 USD
Availability: InStock

$200.00 $1,008.00

Price For: Each Bearing Type: Ball Discharge Width (In.): 22-5/8 Mounting Position: All With Shaft Horizontal Dimension E (In.): 22-5/8 Number of Mounting Points: 4 Filter Width (In.): 35-7/8 Motor HP Range: - Hz: 60 Motor HP: 5 CFM @ 1.000-In. SP: 6550 Filter Height (In.): 32-1/3 Dimension M (In.): 31-5/8 Max. Depth (In.): 44 Dimension F (In.): 35
CFM @ 0.375-In. SP: 9325 Sones @ 0.125-In. SP @ 5 Ft.: 30 Wheel Type: Forward Curve Wheel Dia. (In.): 18-1/2 Full Load Amps: 13.0/6.5 Shaft Dia. (In.): 1 Dimension H (In.): 2-3/4 Dimension K (In.): 1-1/8 Dimension S (In.): - Sones @ 0.250-In. SP @ 5 Ft.: 27 Dimension L (In.): 35-3/8 CFM @ 0.500-In. SP: 8950 Wheel Material: Steel Motor Enclosure: Open Dripproof Max. Ambient Temp. (F): 140
CFM Range: - Housing Finish: Green Baked Enamel Type: With Drive Package Housing Material: Steel Assembled/Unassembled: Unassembled Bolt Hole Dia. (In.): 7/8 Dimension A (In.): 41-1/2 Filter Factor: 0.250 Discharge Height (In.): 19-5/8 Dimension C (In.): 44 Voltage: 230/460 Phase: 3 Dimension N (In.): - Dimension P (In.): - RPM Range: - Width (In.): 41-1/2
CFM @ 0.750-In. SP: 8025 Height (In.): 34 CFM @ 0.250-In. SP: 9680 Max. Inlet Temp. (Deg. F): 140 Dimension J (In.): 1-3/4 Filter Rack Stock No.: 3F542 Dimension D (In.): 1-5/8 Blower RPM: 654 CFM @ 0.625-In. SP: 8520 Motor Type: Three Phase Dimension B (In.): 34 Dimension G (In.): 24 CFM @ 0.125-In. SP: 10,000 Motor RPM: 1755 Item: Blower
Country of Origin (subject to change): Multiple
